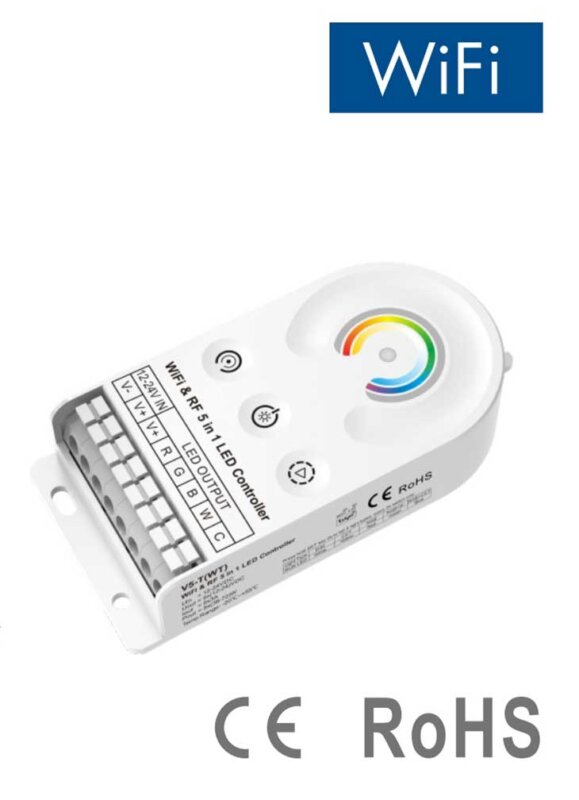

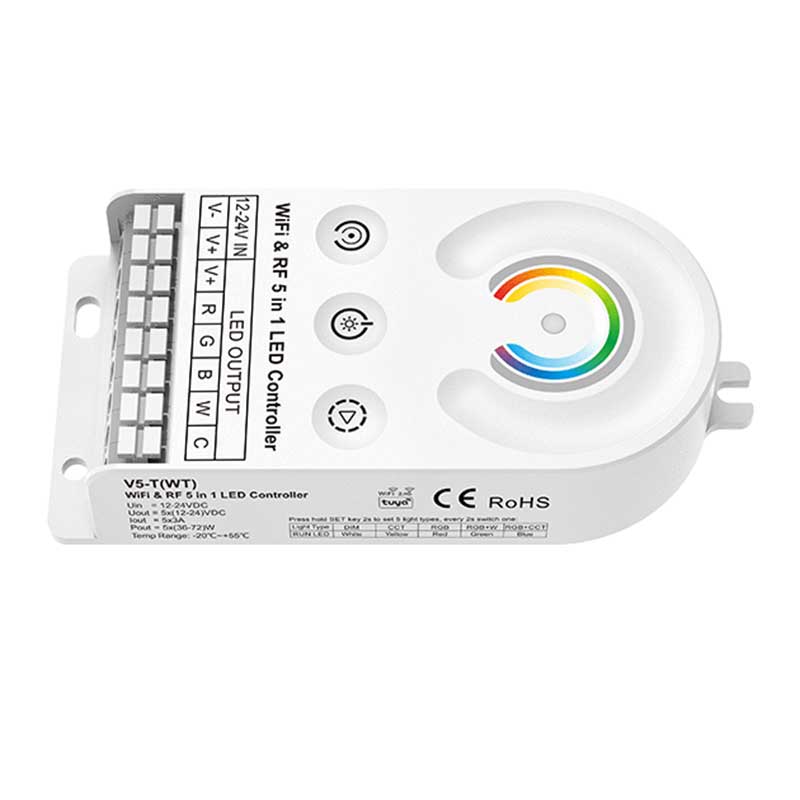

Tuya WiFi LED Strip Controller V5-T(WT) Features
The Skydance V5-T(WT) is a premium Tuya WiFi LED Controller designed for high-end residential lighting. First and foremost, this versatile device supports five different output modes. Specifically, you can control RGB+CCT, RGBW, RGB, CCT, and single-color strips. Furthermore, it operates on a standard 12-24VDC range. Therefore, it is compatible with most LED products on the market today. Because of this flexibility, it has become a top choice for American homeowners.
In addition to its hardware, the V5-T(WT) offers seamless smart home integration. Consequently, you can manage your lights via a smartphone app. Moreover, it works perfectly with Amazon Alexa and Google Assistant for voice control. In fact, the built-in 2.4G RF technology ensures local control always remains functional. As a result, you will never lose control if your internet goes down. Additionally, the device is very easy to install and pair.
Meanwhile, this controller uses advanced 4096-level PWM dimming technology. This means that your lights will be completely flicker-free and smooth. Because of its industrial-grade safety features, the unit is very dependable. In addition, it supports a total output current of 15A for multi-room setups. In summary, if you want professional performance and smart features, the V5-T(WT) is undoubtedly your best option.
Technical Parameters
Input voltage: 12-24VDC
Output voltage: 5×(12-24)VDC
Output current: 5CH, 3A/CH
Output power: 5×(36-72)W
Output type: Constant voltage
Warranty: 5 years
Protection: Anti-reverse
Input signal: WiFi+touch button+RF 2.4GHz
Control distance: 30m (Barrier-free space)
Dimming levels: 4096 (2^12) levels
Dimming range: 0-100%
Dimming Curve: Logarithmic
PWM Frequency: 2KHz (default)
EMC standard: EN IEC 55015/EN IEC 61547, ETSI EN 301 489-1/-3/-17
Safety standard: EN 60669-1/-2
Radio standard: ETSI EN 300 440, ETSI EN 300 328
Certification: CE RoHS
Operation temperature: Ta: -20°C ~ +55°C
IP rating: IP20

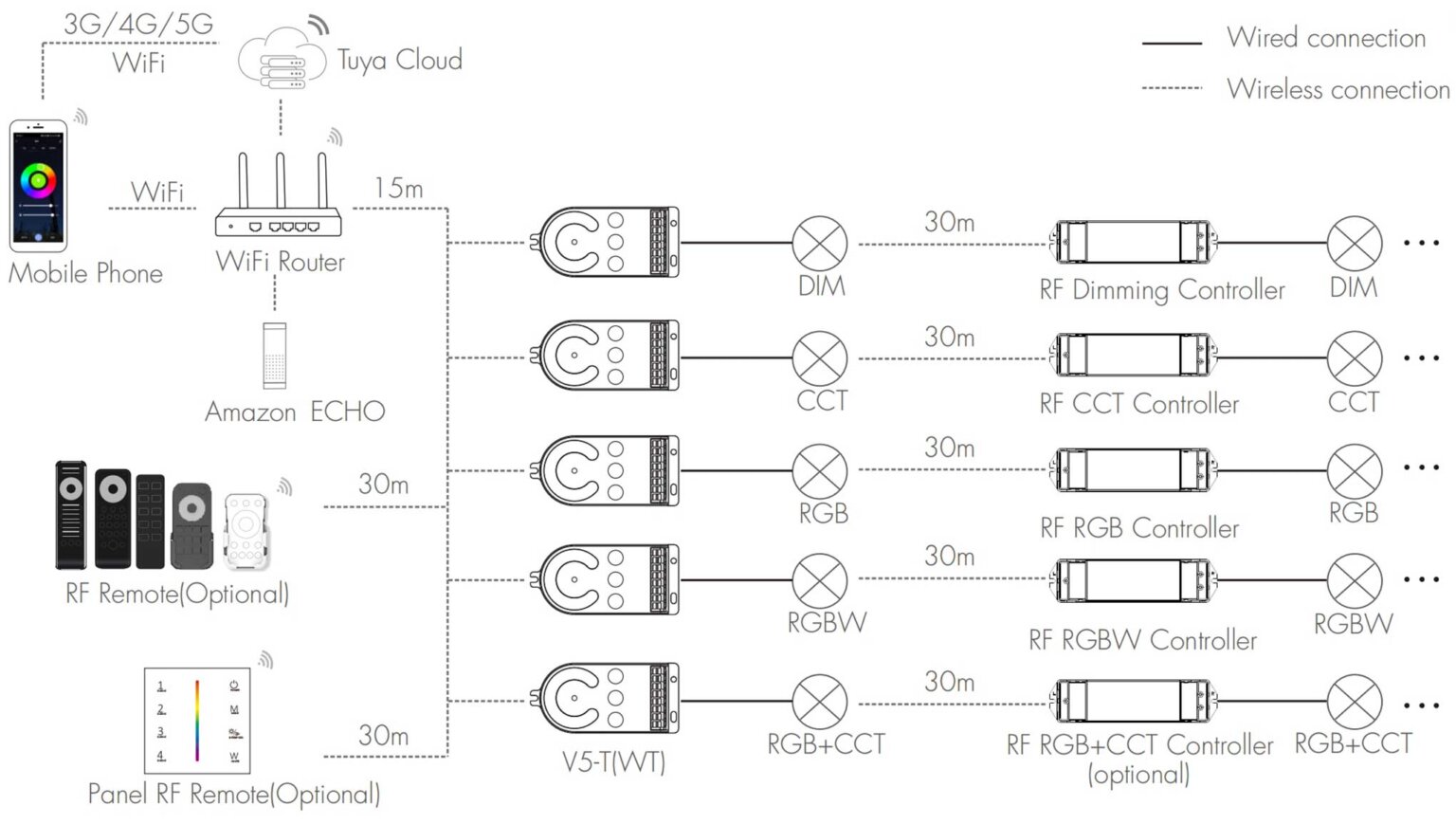

System Wiring
Note:
1. The above distance is measured in a spacious (no obstacle) environment. Please refer to the actual test distance before installation.
2. Please check if the WiFi router is in the 2.4G band, the 5G band is not available, and do not hide your router network.
3. Please keep the distance between V5-T(WT) devices and the router close, and check the WiFi signals.
