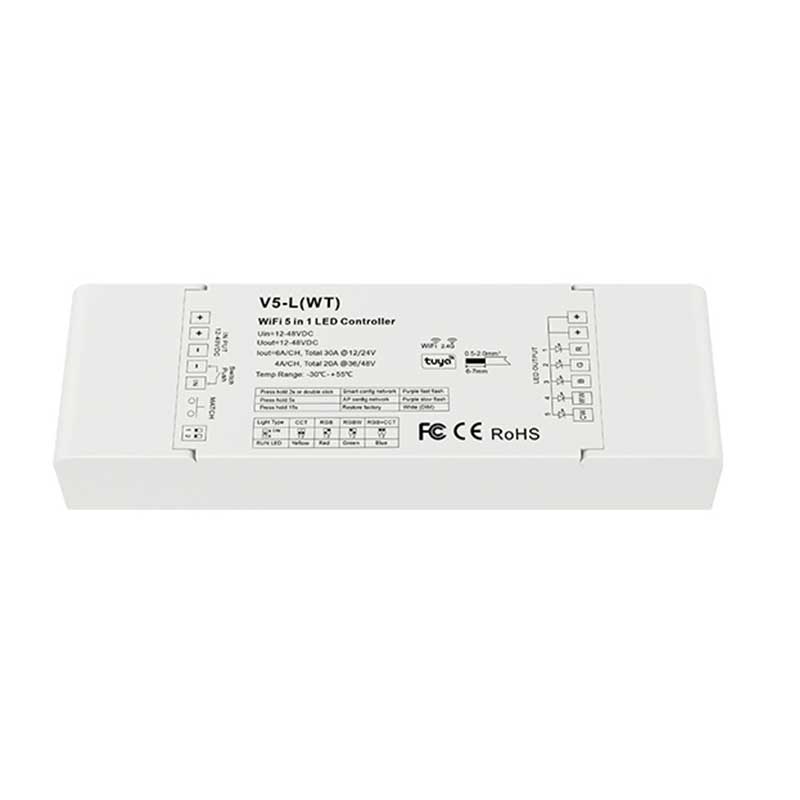

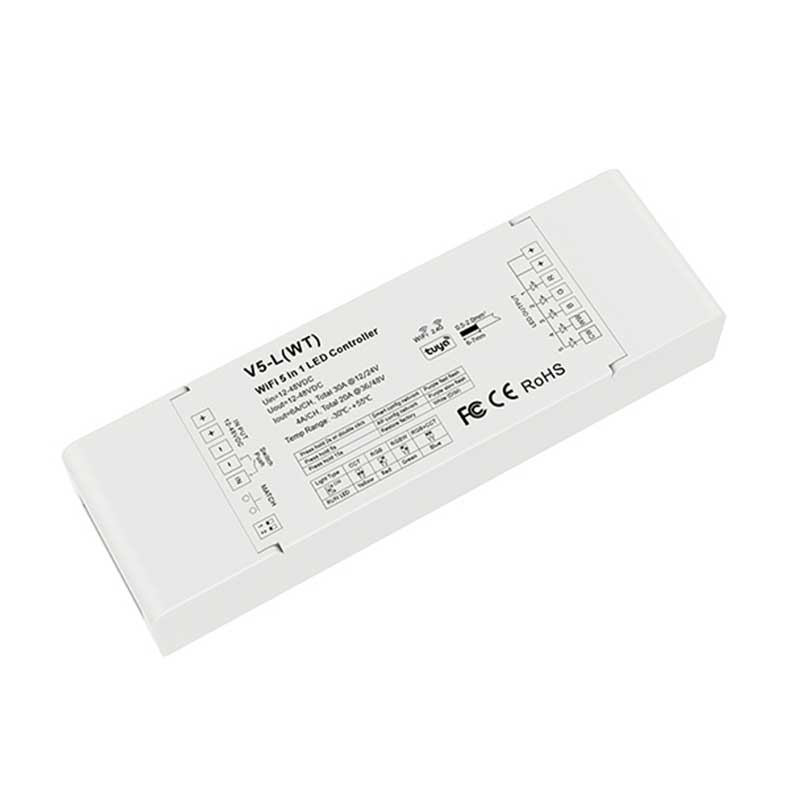

Skydance V5-L(WT) 5-in-1 WiFi LED Controller Tuya Smart & RF

Name: Skydance V5-L(WT) 5-in-1 WiFi LED Controller Tuya Smart &amp; RF
SKU: V5-L(WT)
Price: 27.98 USD
Availability: InStock

$27.98

● 5-in-1 function, used for control RGB, RGBW, RGB+CCT, color temperature, or single color LED strip.

● DC12-48V input, 5-channel constant voltage output.

● Tuya APP cloud control, support on/off, RGB color, color temperature, and brightness adjust, delay turn on/off light,

timer run, scene edit, and music play function.

● Voice control, support Amazon Echo and TmallGenie smart speaker.

● Match with RF 2.4G remote control, optional.

● User needs to set the light type by pressing the key before the Tuya APP network connection, and match the RF remote of the same light type.

● Each V5-L(WT) controller can also work as a WiFi-RF converter, then use the Tuya APP to control one or more RF LED controllers

or RF LED dimming drivers synchronously.

● PWM frequency 500Hz, 2000Hz, 8000Hz or 16000Hz selectable.

● Light on/off fade time 3s selectable.

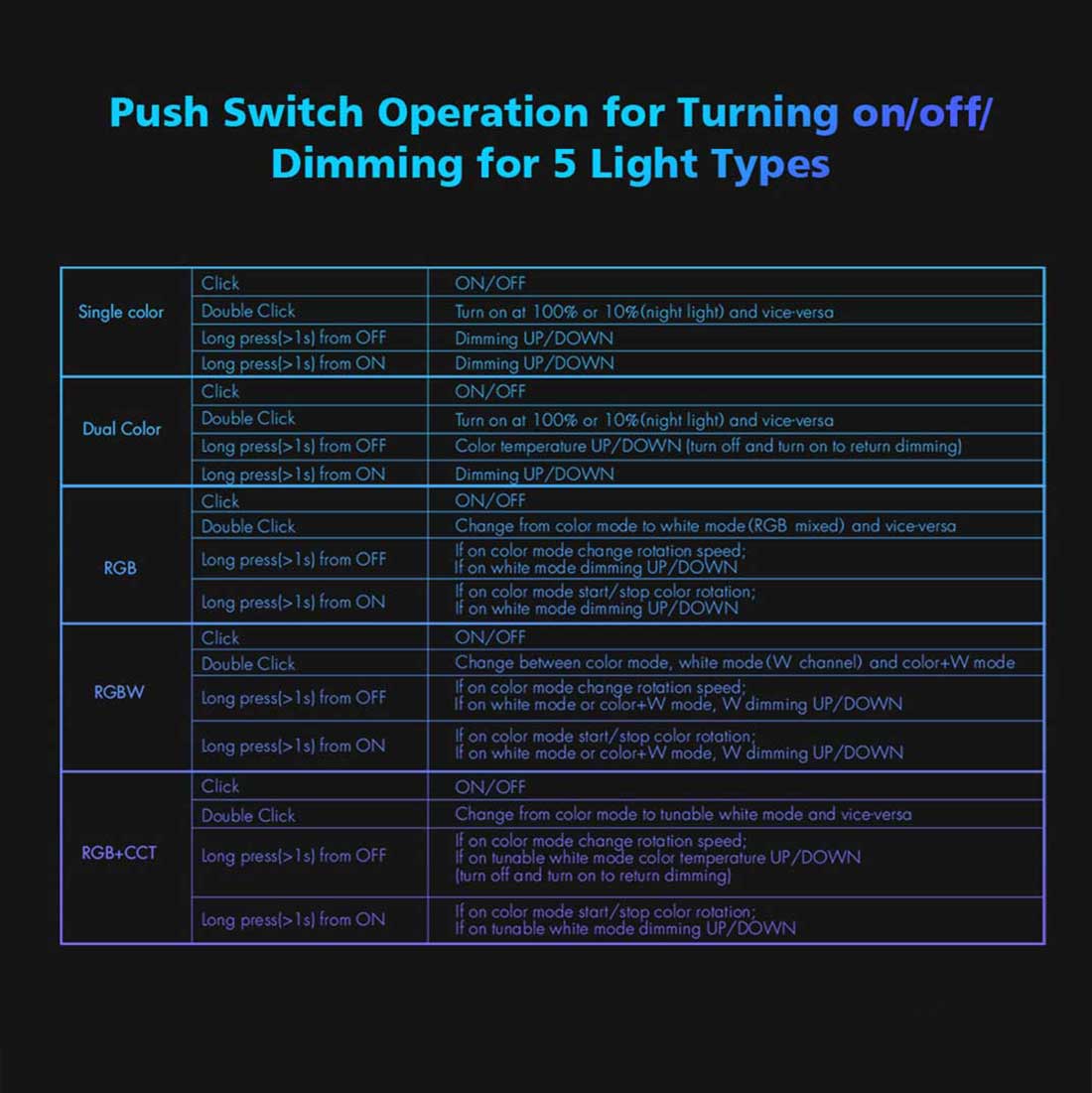

● Connect with an external push switch to achieve on/off and 0-100% dimming function.

Download

V5-L(WT) User Manual

SKU: V5-L(WT) Category: DMX | Wi-Fi | Remote Control System Tag: LED controller

Guaranteed Safe Checkout

Skydance V5-L(WT) Features

Take full command of your lighting with the Skydance V5-L(WT). This premium Tuya WiFi 5-in-1 LED controller is perfect for high-performance smart homes. First and foremost, it eliminates the need for multiple devices. Specifically, it offers a universal solution for RGB+CCT, RGBW, and single-color LED strips. Consequently, you can manage your entire lighting system with total ease. Moreover, the robust app connection ensures your lights are always responsive and reliable.

The V5-L(WT) stands out because of its superior power handling. For example, it features 4,096 levels of smooth dimming. As a result, you get a flicker-free experience in every room. This means the controller is perfect for professional video environments. Furthermore, you can easily sync your lights with music or set custom timers. In addition, the device allows you to manage different zones with surgical precision.

Meanwhile, the V5-L(WT) is fully compatible with Amazon Alexa and Google Assistant. Therefore, you can enjoy effortless voice control at any time. Additionally, the built-in 2.4G RF receiver allows for local operation. This is important because the controller works even if your internet goes down. In summary, with its wide 12-48VDC range, it is the most reliable choice for your next smart lighting project. Undoubtedly, this heavy-duty unit will exceed your expectations.

Technical Parameters

Model: V5-L(WT)
Input voltage: 12-48VDC
Input current: 30.5A
Output voltage: 5 x (12-48)VDC
Output current: 6A/CH @ 12/24V, 4A/CH @ 36/48V
Output type: Constant voltage
Input signal: Wifi + RF 2.4GHz + Push-DIM
Control distance: 30m (Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM frequency: 2000Hz (default)
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Certification: CE, EMC, LVD, RED
Operation temperature: Ta: -30℃ ~ +55℃
Case temperature (Max.): Tc: +85℃
IP rating: IP20
Warranty: 5 years
Protection: Reverse polarity, Over-heat, Short circuit

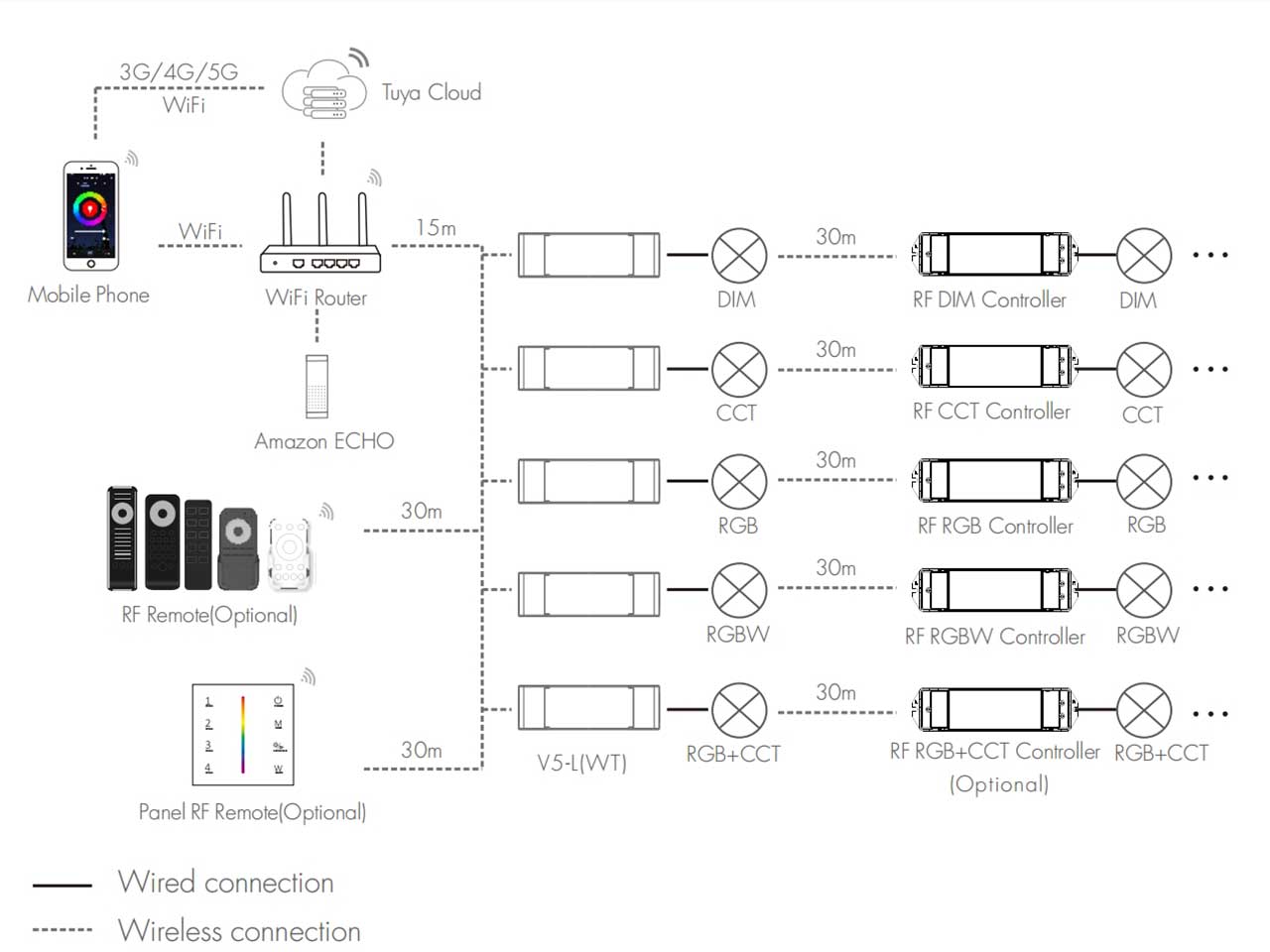

System Wiring

Note:
1. The above distance is measured in a spacious(no obstacle) environment. Please refer to the actual test distance before installation.
2. Please check if the WiFi router is in the 2.4G band, the 5G band is not available, and do not hide your router network.
3. Please keep the distance between V5-L(WT) devices and the router close, and check the WiFi signals.
