RGB Controller Kit Fetures

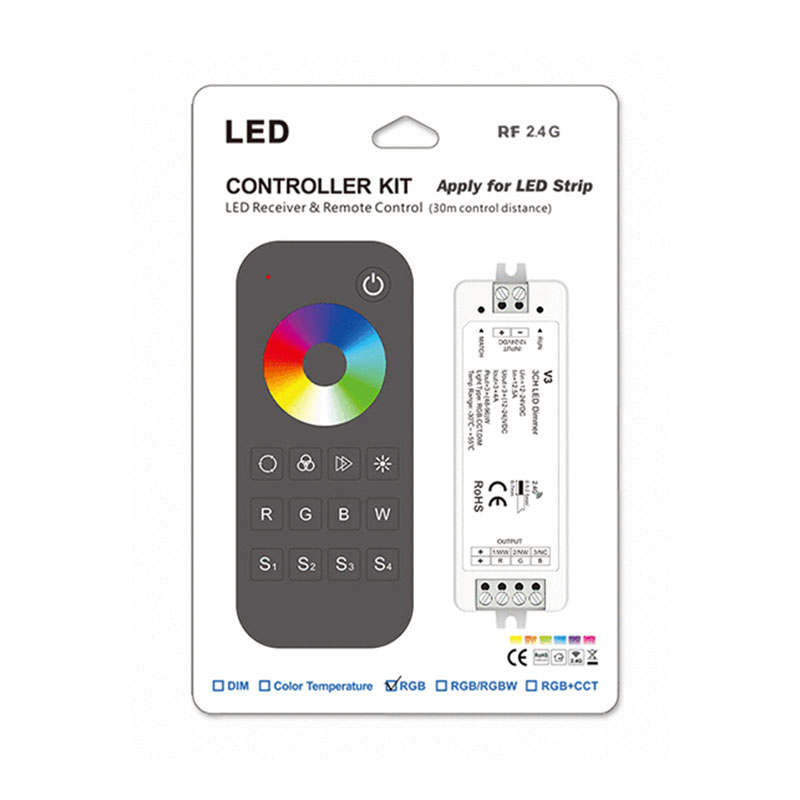

The SKYDANCE RGB Controller Kit V3+RT4 is a high-performance system for LED bulbs and strips. First and foremost, it features a compact mini controller and an ultra-sensitive touch wheel. Furthermore, the kit uses advanced RF remote technology for smooth color management. Consequently, you can enjoy precise dimming and dynamic lighting effects. In addition, it supports synchronized 4-zone control for larger spaces. Therefore, this kit is perfect for home lighting and commercial projects. Moreover, it provides a very reliable experience for stage effects. As a result, you can easily customize your atmosphere. In summary, the V3+RT4 offers unmatched performance and ease of use.
●3 Channel Constant Voltage Output Control R, G, and B channels independently. Consequently, you can create millions of vivid colors for any space.
●Ultra Sensitive Touch Wheel: Quickly select any static RGB color. Specifically, you can adjust saturation with intuitive touch control.
●10 Dynamic Modes Built-in: Includes fade, jump, and smooth transitions. Furthermore, these multi-color effects offer a very flexible ambiance.
●Wireless RF Remote Control (30m Range) Uses a stable 2.4GHz signal. In addition, it supports auto-transmission and synchronization across multiple controllers.
●Smooth, Flicker Free Dimming Features a 0–100% dimming range with 4096 levels. Therefore, the 1000Hz PWM frequency ensures high-quality light output.
●Scene Memory Function: Save and recall up to 4 custom scenes. As a result, you can achieve instant mood changes easily.
●Selectable Light Fade Time: Choose between a soft 3s fade or instant 0.5s transitions. Moreover, this feature provides a professional touch.
●Safe and Durable Design Includes reverse polarity protection and full certifications. Finally, the IP20 housing comes with a 5-year warranty.
RGB LED Controller Set Parameters

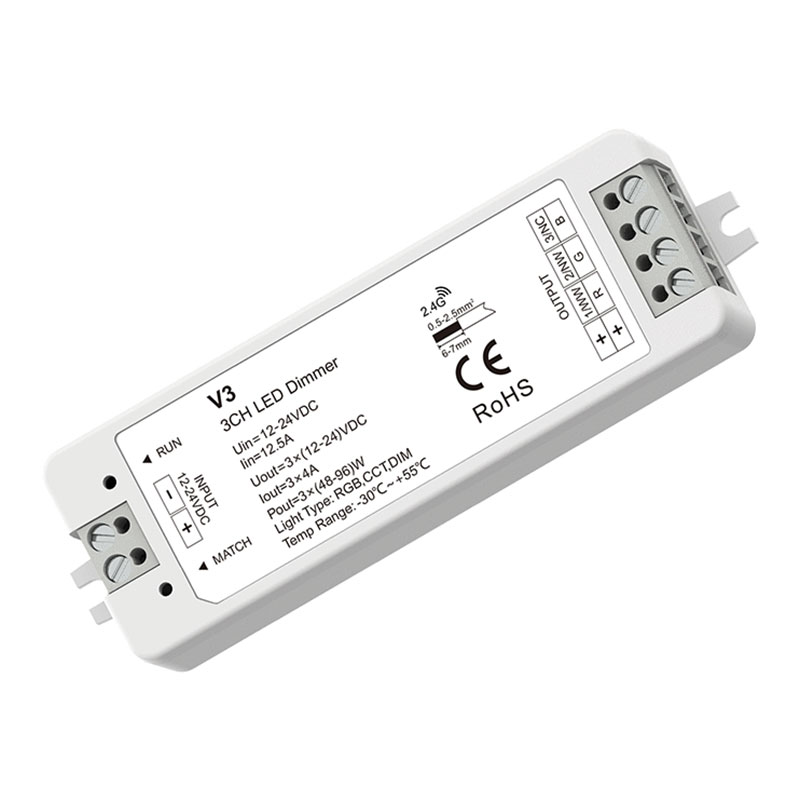

V3 LED Receiver’s Input and Output
Input voltage: 12-24VDC
Input current: 12.5A
Output voltage: 12-24VDC
Output current: 3CH, 4A/CH
Output power: 144W/288W (12V/24V)
Output type: Constant voltage
RT4 LED Remote’s Input and Output
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAAx2)
Working current: ＜5mA
Standby current: ＜10μA
Standby time: 1 years
Remote distance: 30m(Barrier-free space)
Dimming data
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 2000Hz(default)
Safety and EMC
EMC standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety standard: EN 62368-1:2020+A11:2020
Radio Equipment: ETSI EN 300 328 V2.2.2
Certification: CE, EMC, LVD, RED
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Environment
Operation temperature: Ta: -30°C ~ +55°C
Case temperature(Max.): Tc: +85°C
IP rating: IP20

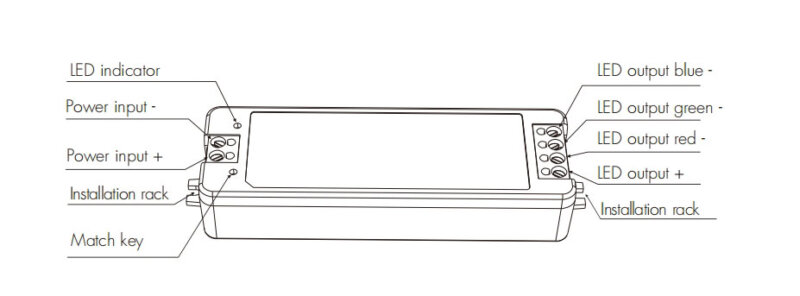

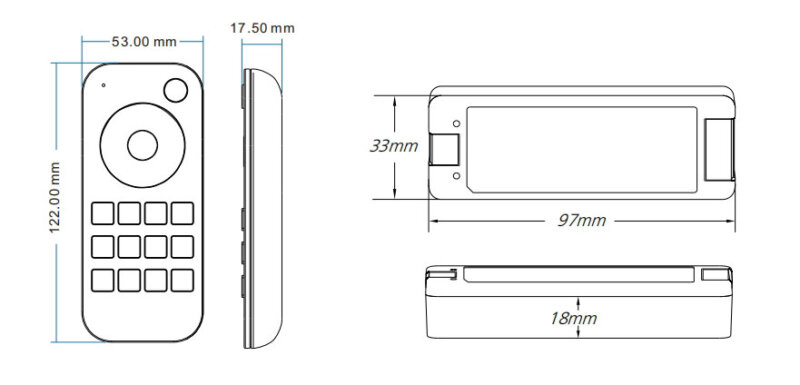

Mechanical Structures and Installations

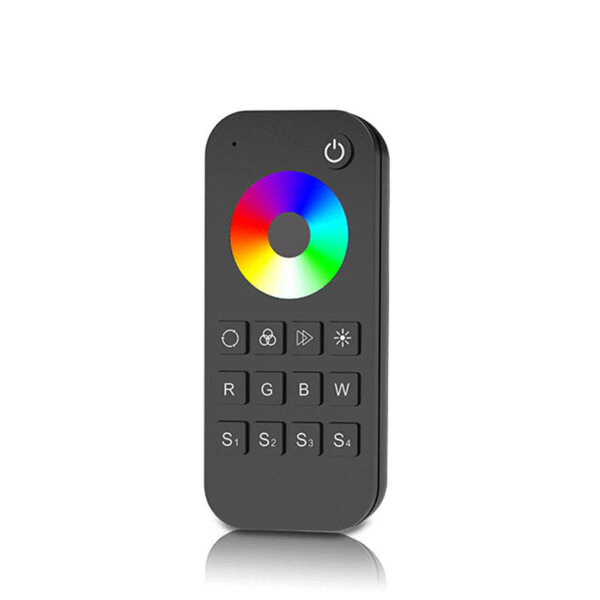

RT4 Remote Key Function

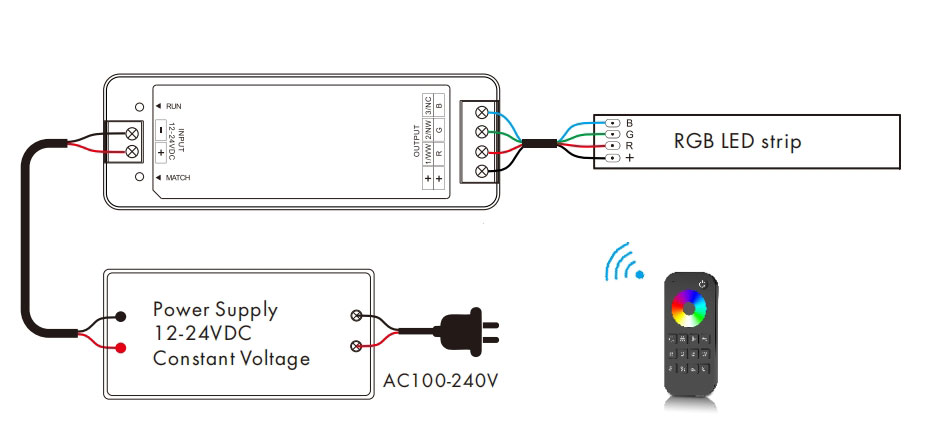

V3+RT4 Wiring Diagram
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the V2 controller’s Match key
Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Delete:
Press and hold match key for 5s to delete all match.
The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again,
Immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Light on/off Fade Time
Set Fade Time
First, long-press the match key for 5s. Next, short-press the match key 3 times. Consequently, the light-on/off time will be set to 3s. Meanwhile, the indicator light will blink 3 times to confirm.
Restore Factory Defaults
Alternatively, you can long-press the match key for 10s. As a result, this will restore all factory default parameters. Furthermore, the light-on/off time also restores to 0.5s. In summary, these steps help you reset the device quickly.
Application notes
All the receivers are matched with one RF remote.

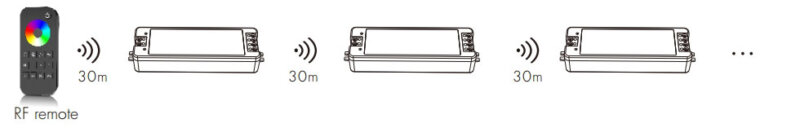

Auto-transmitting Function
One receiver can transmit signals from the remote to another receiver within 30 meters. Specifically, the remote control distance can be extended significantly. As long as there is a receiver within 30m, the signal remains strong. Consequently, you can cover much larger areas without signal loss.
Auto-synchronization Function
Multiple receivers within a 30m distance can work together perfectly. Furthermore, they remain fully synchronized when controlled by the same remote. Specifically, they must use the same dynamic mode and speed. Therefore, your entire lighting system will display consistent effects. In summary, this feature ensures a professional and unified visual experience.
Why Choose the SKYDANCE V3+RT4 RGB Controller Kit?
The RGB Controller Kit V3+RT4 combines advanced RF remote technology with precise RGB color management. Whether you need vibrant RGB effects for events, relaxing ambient lighting for your living room, or professional-grade LED control in commercial projects, this kit delivers unmatched performance and ease of use.
👉 Perfect for: RGB LED strips, color-changing bulbs, ambient lighting, stage effects, smart home upgrades.
Frequently Asked Questions
Q1: What is included in the SKYDANCE RGB Controller Kit V3+RT4?
A: First of all, the kit includes one mini RGB LED controller (V3). In addition, it comes with one professional RF touch remote (RT4). Consequently, you have everything needed for a complete setup. In summary, this combination provides a perfect and ready-to-use solution.
Q2: Can this RGB Controller Kit work with LED strips and RGB bulbs?
A: Yes, it is compatible with constant voltage 12–24VDC RGB LED strips and color-changing bulbs.
Q3: What is the maximum control distance of the RF remote?
A: The remote works perfectly up to 30m in barrier-free spaces. Specifically, it features auto-transmission and synchronization for multiple controllers. Consequently, you can manage extensive lighting setups with ease. In addition, this ensures a stable and unified signal across your entire system.
Q4: Does it support scene memory?
A: First and foremost, you can easily save up to 4 custom lighting scenes. Furthermore, you can recall these settings anytime with a single touch. Consequently, switching between different moods becomes very fast and convenient. In summary, this feature ensures your favorite lighting is always ready.
Q5: Is the RGB Controller Kit easy to install?
A: Yes, it’s compact, user-friendly, and designed for quick plug-and-play setup.
