Dual Color LED Controller Set Fetures
Upgrade your lighting experience with our advanced CCT LED Controller Kit. First and foremost, it is designed for smooth color temperature adjustment. Specifically, you can switch easily between warm white and cool white. Furthermore, the dual-channel constant voltage output ensures stable performance. In addition, the ultra-sensitive touch control and RF remote offer precise dimming.
Consequently, you can enjoy scene memory and flicker-free lighting. Therefore, this kit is perfect for your home, office, or commercial projects. Because of its high flexibility, it meets the demands of any professional project. In summary, it provides a comfortable and high-quality lighting environment. Undoubtedly, this is the ultimate solution for modern smart lighting.
●2 Channel CCT Control – Supports independent warm white (WW) and cool white (CW) adjustment for perfect neutral balance. Click to order CCT COB LED lights.
●Ultra Sensitive Touch Wheel Instantly fine-tune color temperature with ease. Specifically, the responsive control wheel ensures a smooth experience.
●Smart Remote with Presets This remote includes 4 brightness shortcuts. Furthermore, you can save 4 customizable scene memories.
●Smooth Dimming Without Flicker Enjoy a 0–100% dimming range with 4096 levels. Consequently, the 2000Hz PWM frequency provides high-quality lighting.
●Selectable Fade On/Off Effect This feature allows for a very soft transition. In addition, you can adjust the fade time between 0.5s and 3s.
●Power-Off Memory Function: The system automatically restores your last lighting state. Therefore, your settings remain safe even after a power outage.
●Strong Safety Protection The unit includes built-in short-circuit protection. Moreover, it is CE, RoHS, and FCC certified for your safety.
●Wide Compatibility This controller works perfectly with 12–24VDC LED strips. In summary, it supports up to 120W per channel with reliable performance.
CCT LED Controller Kit Parameters

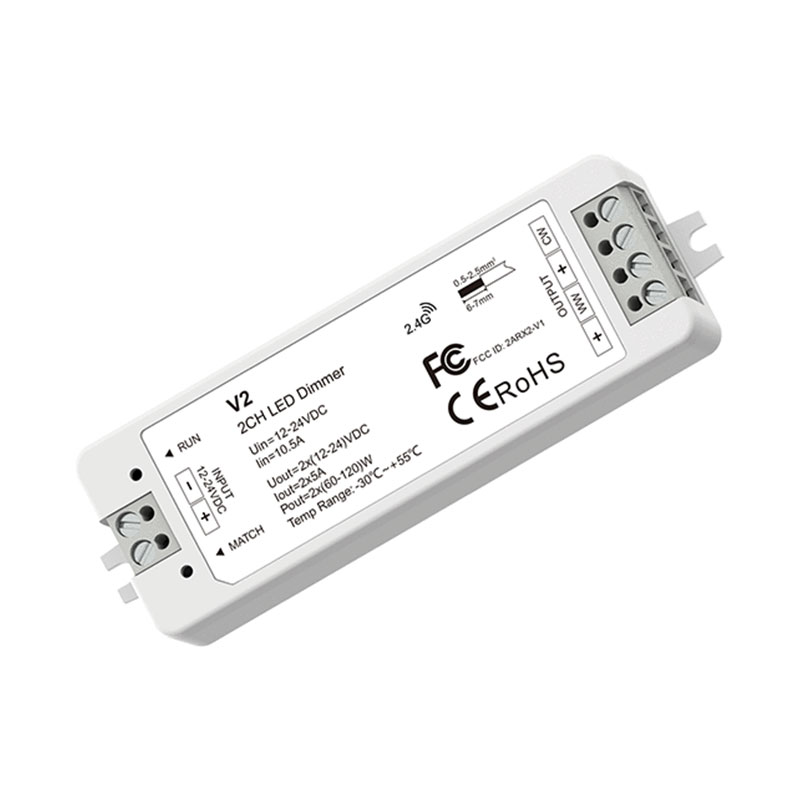

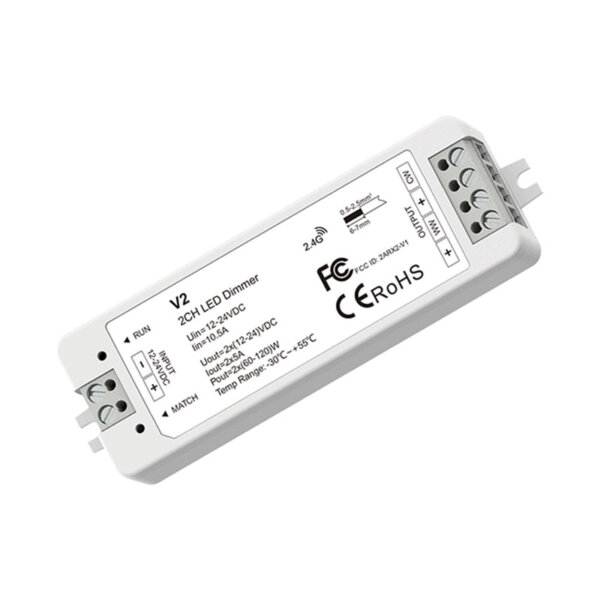

V2 LED Receiver’s Input and Output
Input voltage: 12-24VDC
Input current: 10.5A
Output voltage: 12-24VDC
Output current: 2CH,5A
Output power: 60W/120W (12V/24V)
Output type: Constant voltage

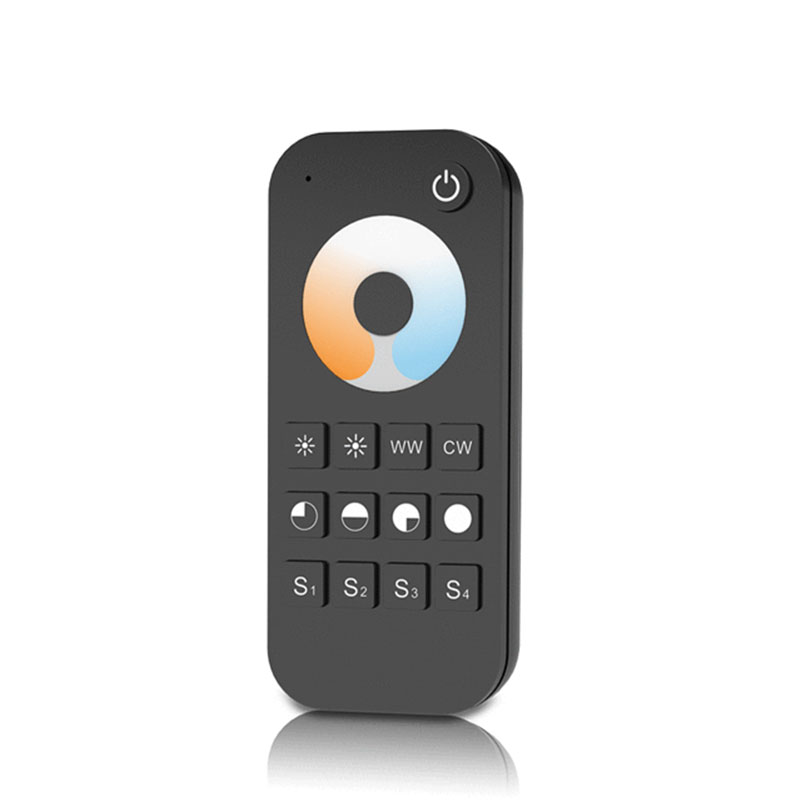

RT2 LED Remote’s Input and Output
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAAx2)
Working current: ＜5mA
Standby current: ＜10μA
Standby time: 1 years
Remote distance: 30m(Barrier-free space)
Dimming data
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 2000Hz(default)
Safety and EMC
EMC standard: EN IEC 55015/EN IEC 61547, ETSI EN 301 489-1/-3
Safety standard: EN 61347-1/-2, EN 62493
Radio Equipment: ETSI EN 300 440
Certification: CE, RoHS, FCC
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity, Over-heat, Over-load, Short circuit
Environment
Operation temperature: Ta: -30°C ~ +55°C
Case temperature(Max.): Tc: +85°C
IP rating: IP20

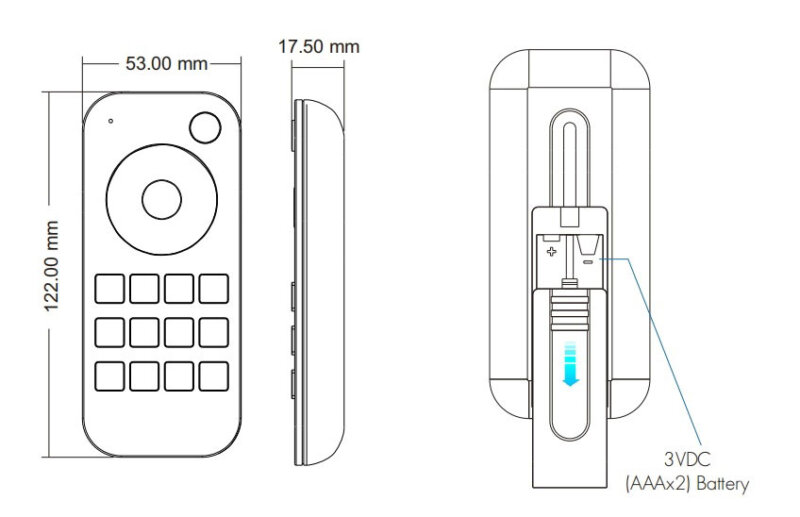

Mechanical Structures and Installations

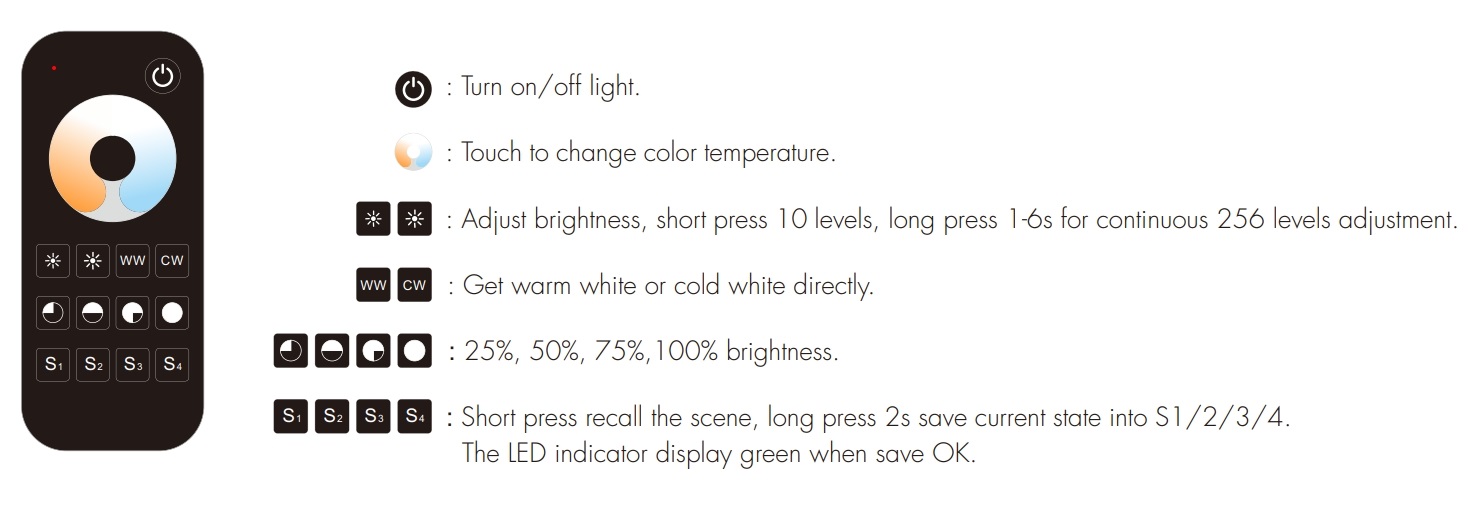

RT2 Remote Key Function

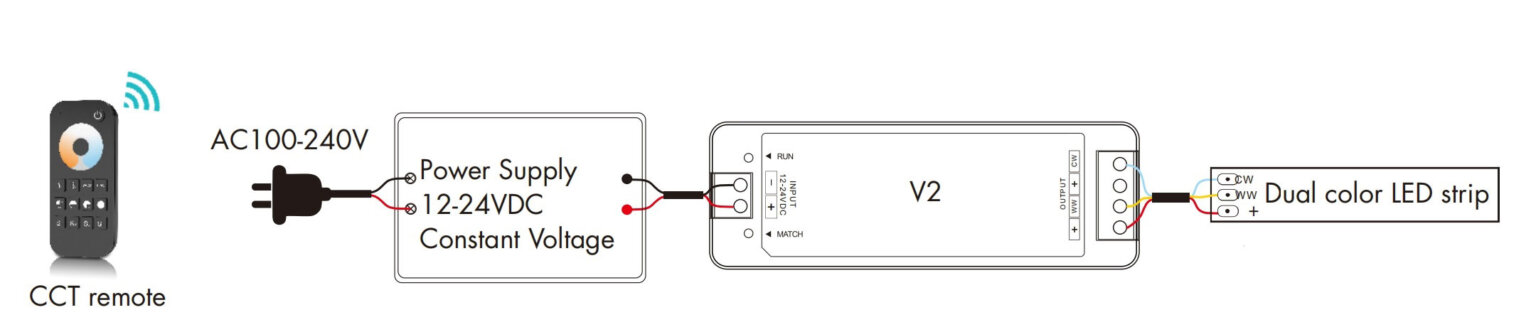

V2+RT2 Wiring Diagram
Note:
CCT Function Setting
First, long-press the match key for 15s. Next, enable the continuous switch off-on twice rapidly. Specifically, this action switches between 3 levels of color temperature. However, please note that this feature is disabled by default.
Factory Reset
Alternatively, you can long-press the match key for 10s. As a result, this will restore all factory settings. In addition, the process is very simple and takes only seconds.
Power Failure Memory
Furthermore, the device includes a power failure memory function. Specifically, you should set the light state for 5s. Consequently, the current state will be saved automatically. Therefore, the light will not change when you re-power the system. In summary, this ensures a consistent lighting experience.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the V2 controller’s Match key
Match:
Short press match key,
immediately press on/off key of the remote.
Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again,
Immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Light on/off Fade Time
First, long press the match key for 5s. Next, short press the match key 3 times. Consequently, the lighting effect will change to a 3s fade in and out. Meanwhile, the indicator light will blink 3 times. Therefore, you can easily confirm the setting is successful.
Alternatively, you can long press the match key for 10s. As a result, this will restore all factory default parameters. Furthermore, the light on/off time will restore to 0.5s immediately. In summary, these steps provide simple and quick control over your device.
Dual Color Control
WW=Warm white LED, CW=Cool white LED
Each channel can supply up to 120W(@24V) and white balance can be controlled as such:
| Color temperature | Power distribution |
|---|---|
| Cool white | WW = 0W, CW = 120W |
| Warm white | WW = 120W, CW = 0W |
| Neutral white | WW = 60W, CW = 60W |
