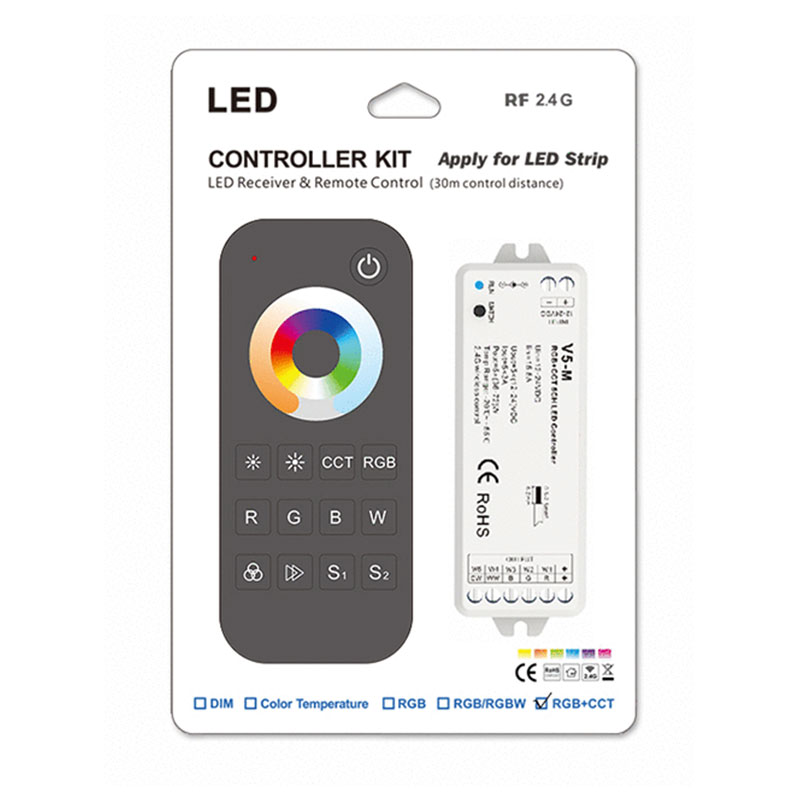

5CH LED Controller Kit Fetures
The Skydance Wireless 5CH RGB+CCT LED Controller Kit RT5+V5-M is a professional lighting solution for RGB and color temperature adjustable LED strips lighs. Featuring 5-channel constant voltage output, it allows precise control of red, green, blue, warm white, and cool white LEDs to create millions of color combinations.
- The ultra-sensitive touch color wheel ensures smooth transitions and flicker-free dimming from 0–100%. With 10 built-in dynamic modes, 2 scene memory slots, and customizable fade time, this controller offers both creative flexibility and user convenience.
- The included RF remote (30 m range) enables wireless control, while the auto-transmitting and synchronization function makes it easy to manage multiple controllers in large-scale installations.
- Compact and mini-style in design, the RT5+V5-M is perfect for both residential and commercial lighting applications, backed by CE, EMC, RED certifications and a 5-year warranty for reliable performance.
RGBCCT LED Controller Set Parameters

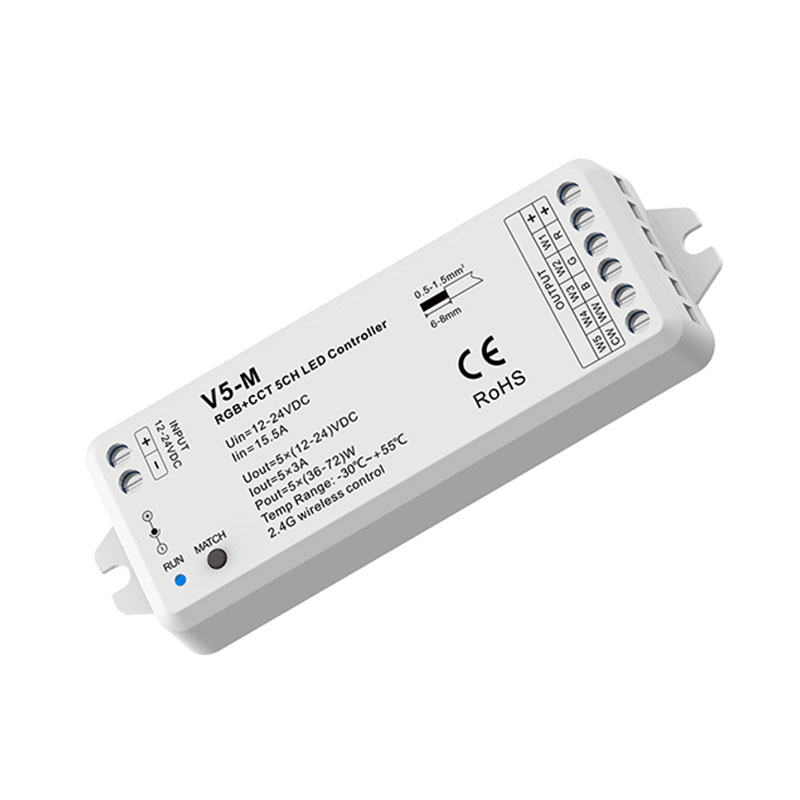

V5-M LED Receiver’s Input and Output
Input voltage: 12-24VDC
Input current: 15.5A
Output voltage: 12-24VDC
Output current: 5CH, 3A/CH
Output power: 180W/360W (12V/24V)
Output type: Constant voltage

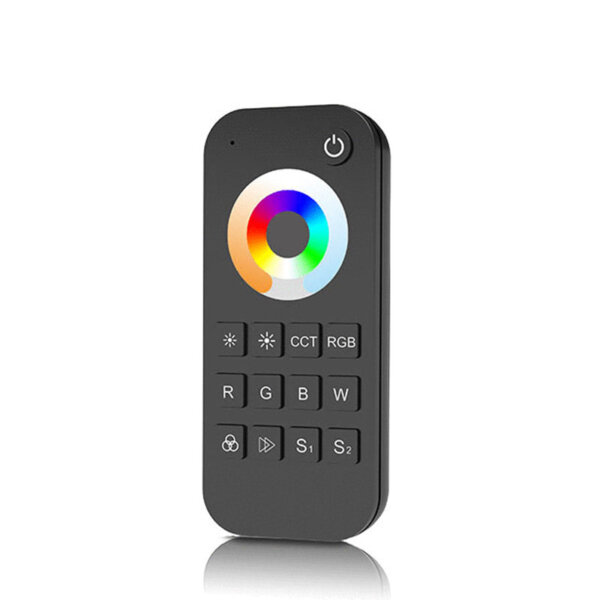

RT5 LED Remote’s Input and Output
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAAx2)
Working current: ＜5mA
Standby current: ＜10μA
Standby time: 2 years
Remote distance: 30m(Barrier-free space)
Dimming data
Input signal: RF 2.4GHz
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000Hz(default)
Safety and EMC
EMC standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety standard: EN 62368-1:2020+A11:2020
Radio Equipment: ETSI EN 300 328 V2.2.2
Certification: CE, EMC, LVD, RED
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Environment
Operation temperature: Ta: -30°C ~ +55°C
Case temperature(Max.): Tc: +85°C
IP rating: IP20

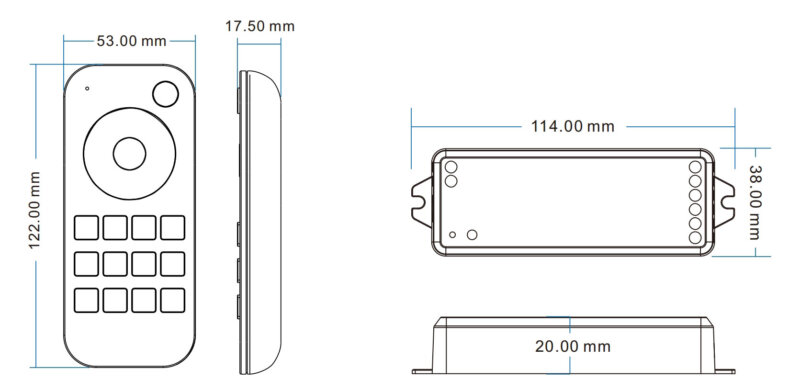

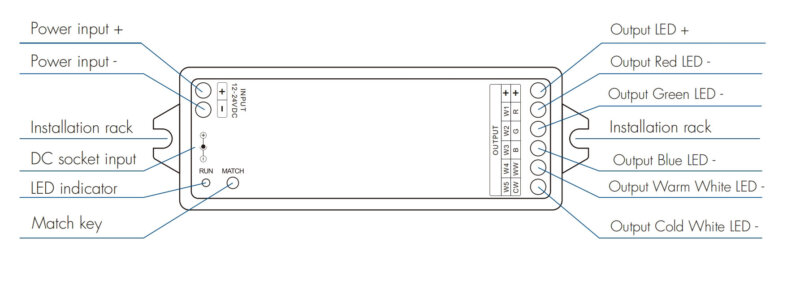

Mechanical Structures and Installations

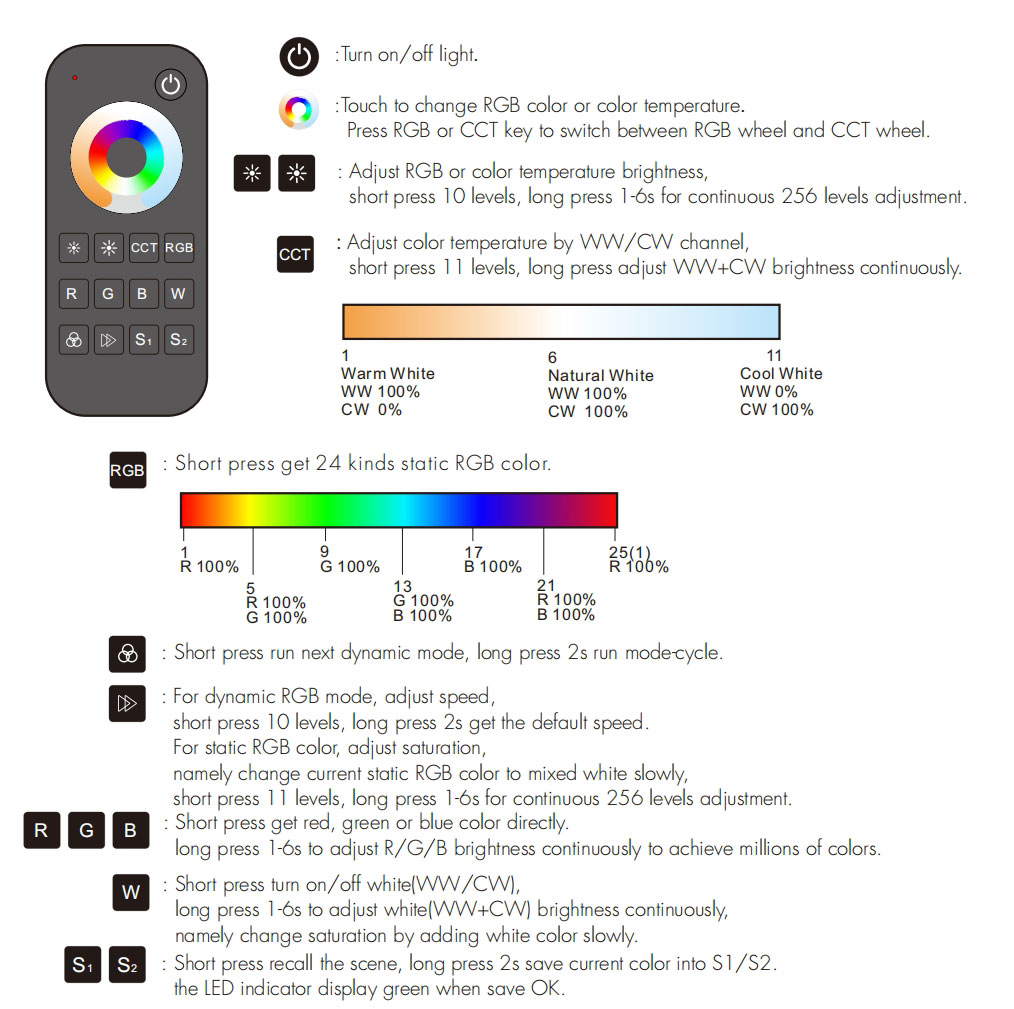

RT5 RF Remote Key Function

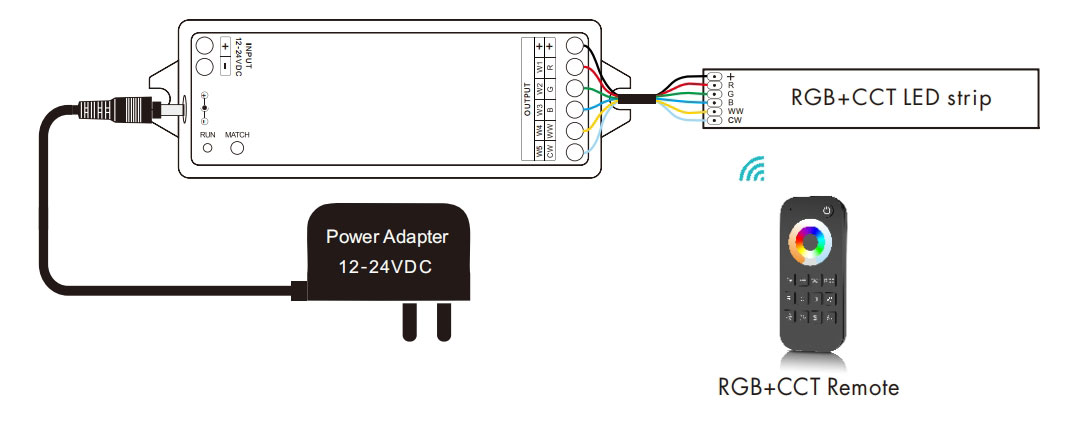

V5-M+RT5 Skydance Control System Wiring Diagram
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the V5-M controller’s Match key
Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Delete:
Press and hold match key for 5s to delete all match.
The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again,
Immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Light on/off Fade Time
Long press match key 5s, then short press match key 3 times. The light on/off time will be set to 3s, and the indicator light will blink 3 times.
Long press match key 10s, restore factory default parameter, the light on/off time also restores to 0.5s.
Application notes
All the receivers are matched with one RF remote.

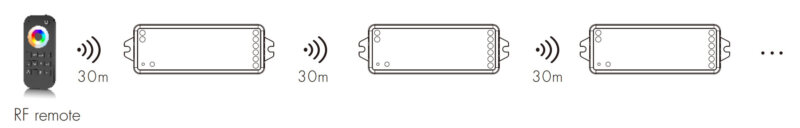

Auto-transmitting: One receiver can transmit signals from the remote to another receiver within 30 meters. As long as there is a receiver within 30m, the remote control distance can be extended.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote, under the same dynamic mode, and at the same speed.
Why Choose the SKYDANCE V5-M+RT5 5CH LED Controller Kit?
The RGB Controller Kit V5-M+RT5 combines advanced RF remote technology with precise RGB color management. Whether you need vibrant RGB effects for events, or adjust the color temperature, relaxing ambient lighting for your living room, or professional-grade LED control in commercial projects, this kit delivers unmatched performance and ease of use.
👉 Perfect for: RGBCCT LED strips, color changing LED tape lights, ambient lighting, stage effects, smart home upgrades.
Frequently Asked Questions
Q1: Can I use one remote to control multiple controllers?
Yes. With the auto-transmitting and synchronization feature, one remote can control multiple V5-M units within a 30-meter range.
Q2: Does it support both RGB and color temperature adjustment?
Absolutely. Each channel (R/G/B/WW/CW) can be dimmed independently, allowing millions of color options and precise CCT adjustment.
Q3: Which LED strips are compatible with this kit?
It works with all RGB+CCT constant voltage LED strips (12–24V DC).
Q4: Is the installation difficult?
Not at all. The compact mini design makes wiring simple, and it’s suitable for both DIY users and professional installers.
Applications
- RGB+CCT LED strip lights
- Smart home ambient lighting
- Showcases, cabinets, and furniture illumination
- Commercial decorative projects
- Stage, events, and creative lighting installations
