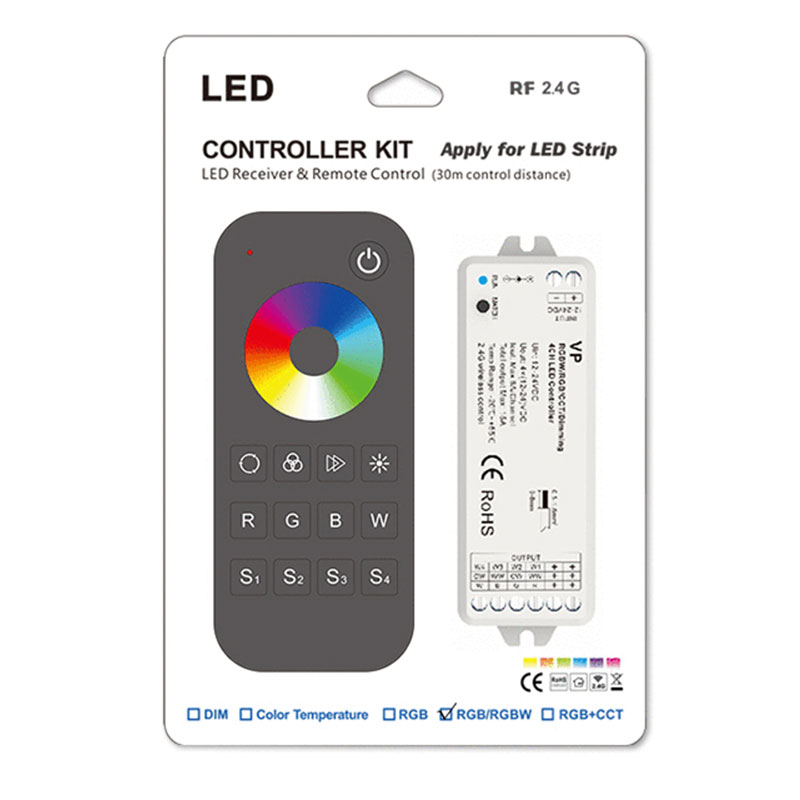

4CH RGBW Controller Kit Fetures
The Skydance VP+RT4 4CH RGBW Controller set is a high-performance system for 12-24V LED strips. First and foremost, it uses advanced 2.4GHz wireless technology for a stable 30m range. Furthermore, this controller supports up to 10 paired remotes for flexible group management. Consequently, it is an ideal choice for large decorative and landscape lighting projects.
In addition, each channel supports up to 6A of power. Specifically, it delivers a massive 384W maximum output for 24V light strips. Moreover, the 4096-level PWM dimming ensures a completely flicker-free experience. Therefore, you can enjoy professional-grade lighting effects in any space.
Meanwhile, the system includes 10 dynamic modes like fade and jump. Additionally, you can save four favorite scenes for quick switching. Because of the automatic sync feature, multiple controllers will stay perfectly consistent. In summary, the VP+RT4 provides unmatched power and smart control for your LED installation.
RGBW LED Controller Set Parameters

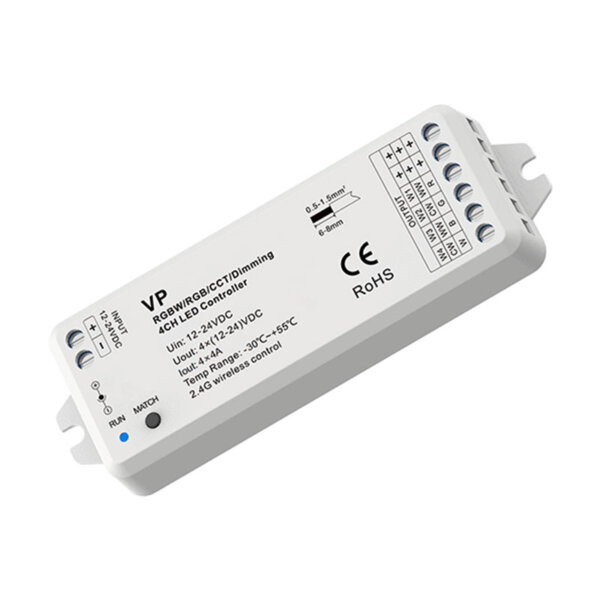

VP LED Receiver’s Input and Output
Input voltage: 12-24VDC
Input current: 15.5A
Output voltage: 12-24VDC
Output current: 4CH, 6A/CH
Output power: 192W/384W (12V/24V)
Output type: Constant voltage
RT4 LED Remote’s Input and Output
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAAx2)
Working current: ＜5mA
Standby current: ＜10μA
Standby time: 1 years
Remote distance: 30m(Barrier-free space)
Dimming data
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 1000Hz(default)
Safety and EMC
EMC standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety standard: EN 62368-1:2020+A11:2020
Radio Equipment: ETSI EN 300 328 V2.2.2
Certification: CE, EMC, LVD, RED
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Environment
Operation temperature: Ta: -30°C ~ +55°C
Case temperature(Max.): Tc: +85°C
IP rating: IP20

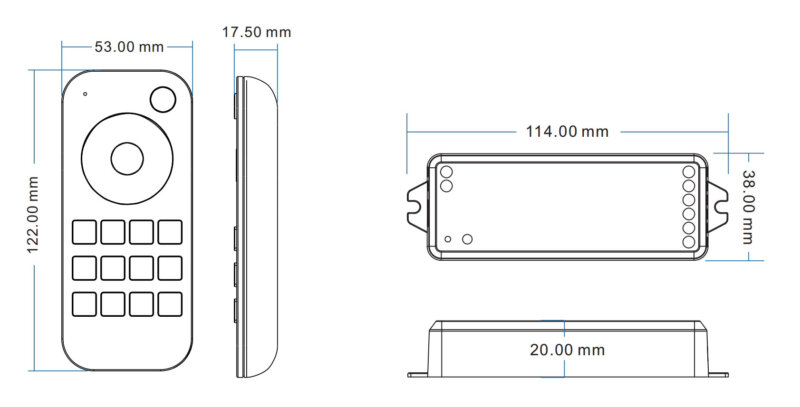

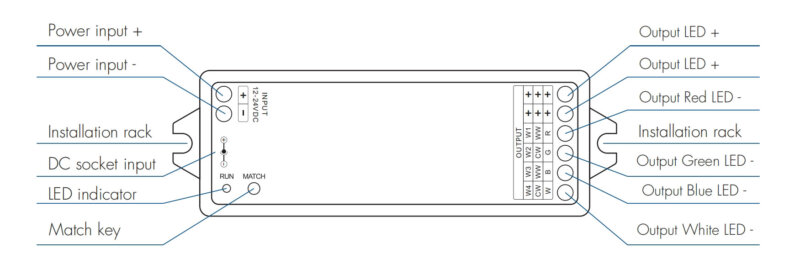

Mechanical Structures and Installations

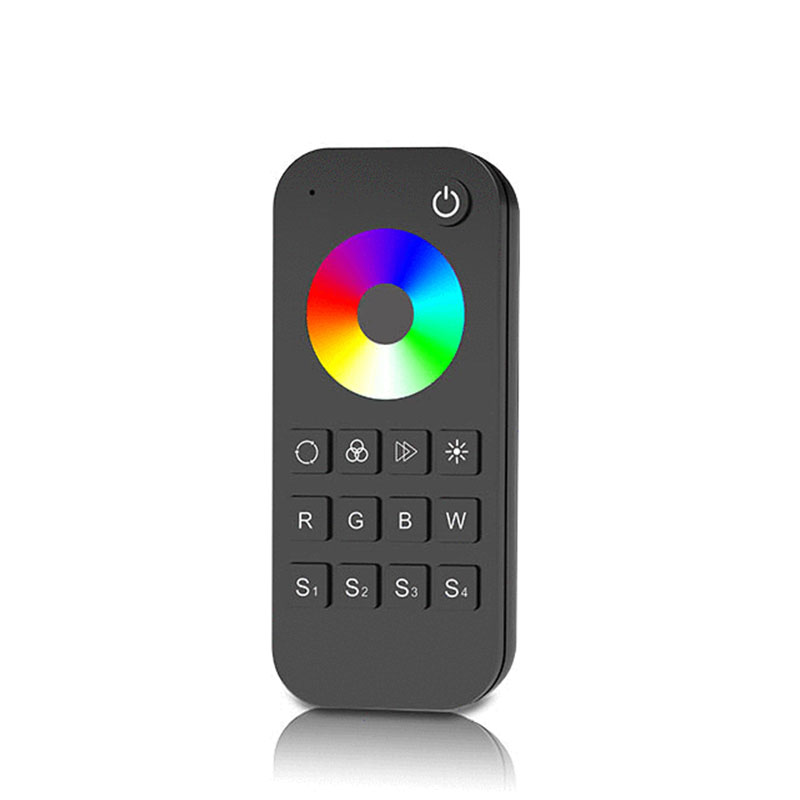

RT4 Remote Key Function

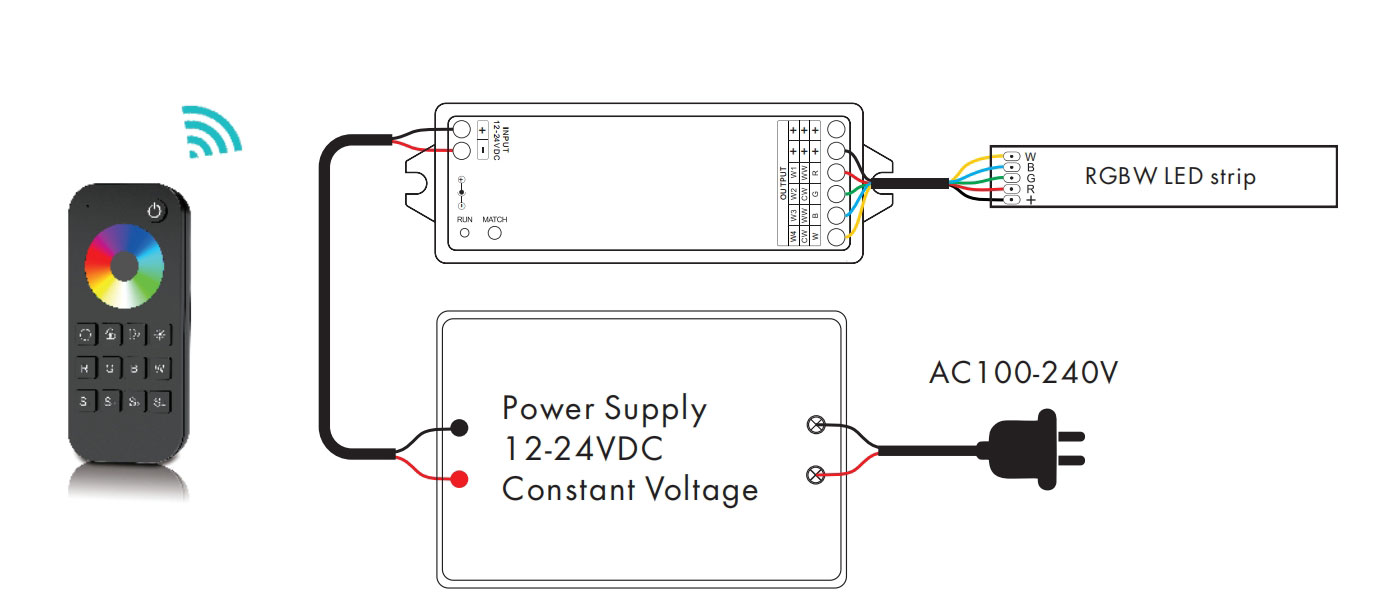

VP+RT4 4CH RGBW Controller Kit Wiring Diagram
Match Remote Control (two match ways)
The end user can easily choose a suitable match or delete ways. Specifically, we offer two convenient options for selection.
Match Procedure:
First and foremost, short-press the match key on the controller. Immediately after this step, press the on/off key if you use a single-zone remote. Alternatively, press the specific zone key if you have a multiple-zone remote. Consequently, your remote and controller will pair successfully. Because of this quick synchronization, you can start controlling your lights right away.
Delete Procedure:
In addition, you can clear all previous pairings if necessary. To do this, press and hold the match key for 5 seconds. Subsequently, this action will delete all existing matches from the device. As a result, the connected light will blink 5 times. This means that all matched remotes were successfully deleted. Finally, your controller is now ready for a fresh setup.
Match the Remote：
First and foremost, you must switch off the power. Next, switch the power on and repeat this action again. Immediately after that, short-press the on/off key 3 times on your remote. Consequently, the light will blink 3 times. This means that the match is successful. Furthermore, you can now control your lights wirelessly.
Delete All Matched Remotes：
In addition to pairing, you can also reset your controller. To start, switch off the power and switch it on again. Then, you must repeat this sequence once more. Immediately, short-press the on/off key 5 times on the remote. As a result, the light will blink 5 times. Undoubtedly, this means all matched remotes were deleted successfully. Therefore, you can now pair a new remote to the system.
Light on/off Fade Time
First, long-press the match key for 5s. Next, short-press the match key 3 times. Consequently, the light-on/off time will change to 3s. Meanwhile, the indicator light will blink 3 times. Alternatively, you can long-press the match key for 10s. As a result, this will restore all factory default parameters. Furthermore, the light-on/off time will also be restored to 0.5s. In summary, these simple steps ensure precise control over your settings.
Application notes
All the receivers are matched with one RF remote.
Auto-transmitting: One receiver can transmit signals from the remote to another receiver within 30 meters. As long as there is a receiver within 30m, the remote control distance can be extended.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote, under the same dynamic mode, and at the same speed.
Frequently Asked Questions
Q1: Can I control multiple LED strips with one controller?
A1: Yes, the 4CH RGBW controller allows up to 4 LED strip channels and supports multiple controllers synchronization.
Q2: What is the maximum power output?
A2: Each channel delivers up to 6A, with a total maximum power of 384W(DC24V) / 192W(DC12V), suitable for most RGBW LED strips.
Q3: How far is the remote control range?
A3: The wireless 2.4GHz remote supports up to 30 meters (line-of-sight) and up to 10 remotes can pair.
Q4: Does it support dimming and dynamic modes?
A4: Yes, 4096-level PWM dimming and 10 pre-set dynamic modes provide smooth, flicker-free lighting effects.
Q5: Can I store custom lighting scenes?
A5: Yes, it supports 4 scene memories for quick switching between your favorite lighting setups.
